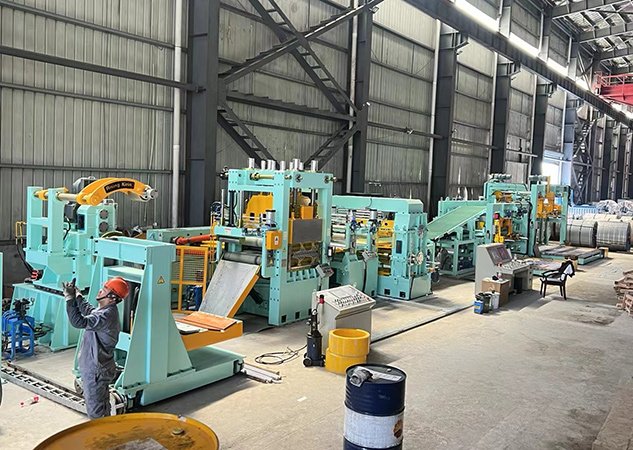

● This flying shear line cuts 150 sheets per minute with a maximum operating speed of 80 m/min. It uses a six-high multi-roll leveler, giving smooth and scratch-free sheets;
● The flying shear is driven by servo motors for high cutting accuracy; the dual-station stacking is fast and efficient.
● The flying shear line is suitable for processing cold-rolled carbon steel, silicon steel, tinplate, stainless steel and various surface-coated metal materials.
Specification Table:
| Parameter/Model | Processing thickness (mm) | Processing width (mm) | Cutting accuracy (mm) | Max line speed (m/min) | Max strokes (spm) | Coil weight (ton) |
|---|---|---|---|---|---|---|
| LZCN-2×650 | 0.2-2 | 100-650 | ±0.3 | 80 | 150 | 5 |
| LZCN-2×800 | 0.2-2 | 100-800 | ±0.3 | 80 | 150 | 8 |
| LZCN-2×1300 | 0.3-2 | 400-1300 | ±0.3 | 80 | 150 | 15 |
| LZCN-2×1600 | 0.3-2 | 400-1600 | ±0.3 | 80 | 150 | 20 |
| LZCN-3×800 | 0.3-3 | 100-800 | ±0.3 | 70 | 150 | 8 |
| LZCN-3×1300 | 0.3-3 | 400-1300 | ±0.3 | 70 | 150 | 15 |
| LZCN-3×1600 | 0.3-3 | 400-1600 | ±0.3 | 70 | 150 | 20 |
